HENGYI KAIFENG · Activated carbon single machine processing equipment

Passed the ISO-9001 national quality system certification and obtained a number of national patents

Activated carbon production equipmentActivated carbon regeneration equipmentComplete set of activated carbon deep processing equipmentActivated carbon drying equipmentActivated carbon cooling equipmentActivated carbon packaging equipmentActivated carbon conveying and lifting equipmentActivated carbon single machine processing equipment
  • Activated carbon rotary screen

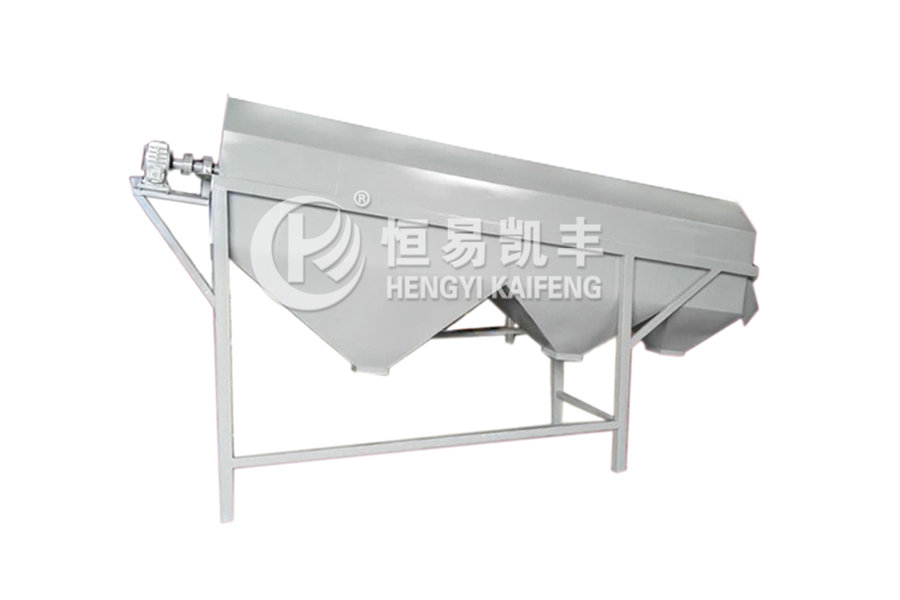

Activated carbon rotary screen

Scan and add WeChat
Wechat QR code
The basic working principle of the roller screen is: the particles rotate to a certain height with the screen cylinder, and are thrown down due to gravity

icon图标Tel:131-5373-6907(Mr. Wei)

icon图标Address:Yishui County Economic Development Zone, Jining City, Shandong Province

Information details

活性炭滚筒圆筛

The basic working principle of the roller screen is: the particles rotate to a certain height with the screen cylinder, and are thrown down due to gravity, and are filtered through the screen to form screening.

The roller screen is a shaftless transmission in the middle, the power end is supported on the frame by bearings, and the other end is supported on the roller cylinder by supporting wheels. The utility model has the advantages of simple structure, simple operation, and material with different particle sizes can be obtained within a certain range by changing the screen. It is suitable for the separation of different particles.


参数
parameter
型号 Model
滚筒尺寸(mm)
Drum size
产量(t/h)
yield
电机功率(Kw)
Motor power
外形尺寸(mm)
Appearance size
直径
diameter
长度
length
GS6*30φ80030000.5-11.54000*1000*1800
GS8*40Φ60040001-21.55000*1200*1800
GS10*30Φ100030001-32.25000*1400*2000
GS12*45Φ120045003-535700*1600*2400
GS15*50Φ150050005-75.56800*1900*2800
GS15*65Φ1500650016-247.58300*1900*2800
GS16*60Φ1600600016-247.57300*2000*3000
Activated carbon rotary screen
Activated carbon rotary screen 2021-6-25 Read 2049
